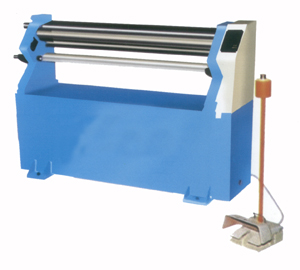

Asymmetrical Three-roll Plate Roll

Send Email

　　Technical Parameters of Asymmetrical Three-roll Plate Roll

Specifications and Model	Maximum Roll Plate Thickness (mm)	Maximum Roll Plate Width (mm)	Plate Yield Limit (mpa)	Minimum Roll Plate Diameter (mm)	Diameter of Upper Roll (mm)	Diameter of Lower Roll (mm)	Diameter of Side Roll (mm)	Motor Power (kw)
W11-2×1000	2	1000	245	250	120	120	120	2.2
W11-2×1200	2	1200	245	250	120	120	120	2.2
W11-2×1500	2	1500	245	250	130	130	130	2.2
W11-2×2000	2	2000	245	250	130	130	130	2.2
W11-4×1000	4	1000	245	300	140	140	140	3
W11-4×1200	4	1200	245	300	140	140	140	3
W11-4×2000	4	2000	245	350	150	150	150	3
W11-6×1000	6	1000	245	350	140	140	140	3
W11-6×1500	6	1500	245	400	150	150	150	4
W11-6×2000	6	2000	245	400	160	160	160	4

　　Features:

　　The structure of this machine is three-roll asymmetrical, the upper roll is main transmission and the lower roll makes vertical lifting movement, in order to clamp the plate. With clip of the lower roll gear and upper roll gear, it becomes main transmission at the same time. The side rolls make inclinational lifting movement, with double functions of pre-bending and rolling round. The structure is compact and it's convenient to operate and maintain.
